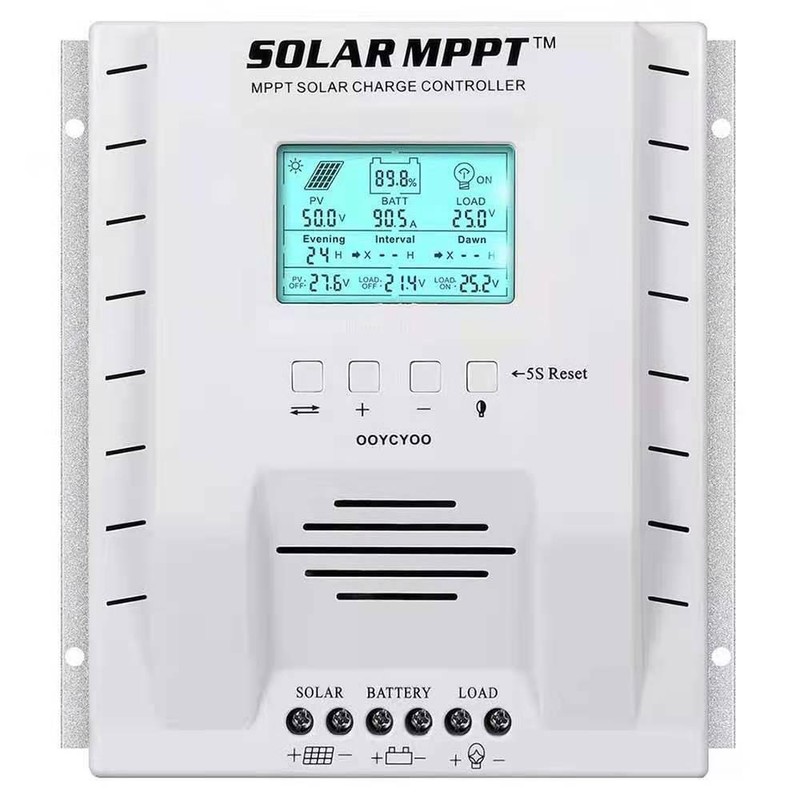

80A 60A MPPT Solar Panel Regulator Charge Controller 12V/24V

Specification: This is a three-time controller into the evening (evening) working time ,an interval of rest or pause time,Dawn working time (morning light function),the user can according to their needs ,set a different time. A: time(evening working)    B: time(Pause working)    C: time(dawn working) This is a compatible MPPT charge controller PWM intelligent/efficient/energy saving, he not only has efficient MPPT controller charging function to automatically track the maximum power point, 10%-30%higher than the ordinary controller charging efficientcy, also has standby energy saving, more than 30% energy than ordinary controller, the standby power consumption of only 10mA-15mA. MPPT solar controller applied to the solar photovoltaic system which is used to coordinate solar panels, storage battery and load. It is a very important assembly in the photovoltaic system. It is different from other solar controllers that it is add the comprehensive protection function makes the whole solar photovoltaic system operate efficiently and safely. Timer Intigrated (Lighting function) 1, LCD screen display, 2, Easy operation interface, 3 , PWM charging mode+MPPT, 4, Parameter user can reset, 5, A key to open and close the load, 6, A key to restore the factory settings, 7, Battery reverse discharge protection, 8, Battery reverse polarity protection 9, Battery under voltage protection, 10, Overload, short-circuit protection, 11, Automatic temperature compensation function, 12,Can charge and discharge at the same time, Always keep the battery in full status 13, USB 5 V charge (c urrent 1500mA ) Optional Package contents: 1* 80A MPPT Solar Controller 1* English User Manual 1* Temp Sensor 60A MPPT Solar Charger Controller for12V/24V PV100V DC Battery Regulator MPPT P60 12V system : Open circuit voltage≤48V（Voc)   Max .PV input Power:750W 24V system: Open circuit voltage≤96V（Voc)    Max .PV input Power:1500W Overview: MPPT series solar charge controller is based on an advanced maximum power point tracking (MPPT) technology developed, dedicated to the solar system, the charge controller conversion efficiency up to 98%. This series MPPT have such advantages:

All the Various Real-time data show on one display ,Convenient user to check

The Solar Panel input voltage up to 100V, suitable for various specifications of solar panel

The power supply uses ultra low power chip ,reducing static standby power consumption ,reduce energy loss

Dual USB 5V Output for phone charging

Support Remote Display

Feature:

Advanced Maximum Power Point Tracking (MPPT) technology, with efficiency no less than 99.5%.

High quality components, perfecting system performance, with maximum conversion efficiency of 98%.

Ultra-fast tracking speed and guaranteed tracking efficiency.

Wide MPP operating voltage range.

12/24VDC automatically identifying system voltage.

LCD panel display design, dynamically displaying tool‟s operating data and working condition.

Support 3 charging lead-acid battery options: Sealed, Gel, Flooded.

Charge mode: three stages (constant current, constant voltage, floating charge), it prolongs service life of the batteries.

Battery temperature compensation function.

Multiple load work modes

This solar charge controller with three time function.

A: time (night working) B: period (pause) C: time slot (dawn working)

Package Including: 1PCS MPPT Solar Controllers 1PCS User Manual (English) 1PCS Temperature Sensor Function: "P" series of an intelligent, multi-purpose solar charge controller LCD screen display Battery reverse discharge protection Simple (and more time control) operation Battery reverse polarity protection MPPT charging mode Battery under voltage protection Parameter user can reset Overload, short-circuit protection A key to open and close the load Automatic temperature compensation function A key to restore the factory settings USB5V charge 2.4A LCD Operating interface description : Network Line Interface (RS485) Indicator: Green light represents the battery, green light flashes, indicating that the load is working properly; yellow light indicates solar energy; yellow light flashes, indicating solar energy charging; Parameter Table: Model MPPT P40 MPPT P60 Maximum power current 40A 60A Battery Votlage 12V 24V Auto Battery float voltage 13.8V(12V system)/27.6V(24V system) Battery (under voltage) protection 10.6V(12V system)/21.2V(24V system) Battery (under voltage) recovery voltage 12.6V(12V system)/25.2V(24V system) Solar Panel Maximum open circuit voltage(Voc) ≤48V（Voc）12V system ;  ≤96V（Voc）24V system Maximum open circuit voltage of the solar panel (Voc) 18V-48V(12V system) / 36V-96V(24V system) Maximum PV input power 520W(12V system) 1040W(24V system) 750W(12V system) 1500W(24V system) System load loss ≤13mA Loop Buck ≤100mV Operating Temperature -10°C~60°C Storeage Temperature -30°C~70°C Humidity requirements ≤90%, No condensation Temperature compensation -4mV/Cell/°C Installaton Lin(mm2) 8mm2 10mm2 Installaton Line(AWG) 10(AWG) 10(AWG) Batery capacity configuration ≥300AH ≥400AH Photo:
