18V 80W Flexible Foldable Solar Panel 12V Controller Portable for

Model:FFSP-80M
Material:Monocrystalline silicon
Maximum Power(Pmax): 80W±3%
Maximum Power Voltage(Vmp):18.00V
Maximum Power Current (Imp):4.44A
Open-Circuit Voltage (Voc): 22.50V
Short-Circuit Current (Isc):4.69A
Nominal Operating Cell Temp.(NOCT):-45 to 80℃
Maximum System Voltage: DC1000V
Foldable Dimension:22x20x0.47(in)/54x50x1.2(cm)
Expansion Dimension:40x22x0.24(in)/100x54x0.6(cm)
Net Weight:2.4kg
Package Weight:3.1kg
Package Size:63x61x6cm

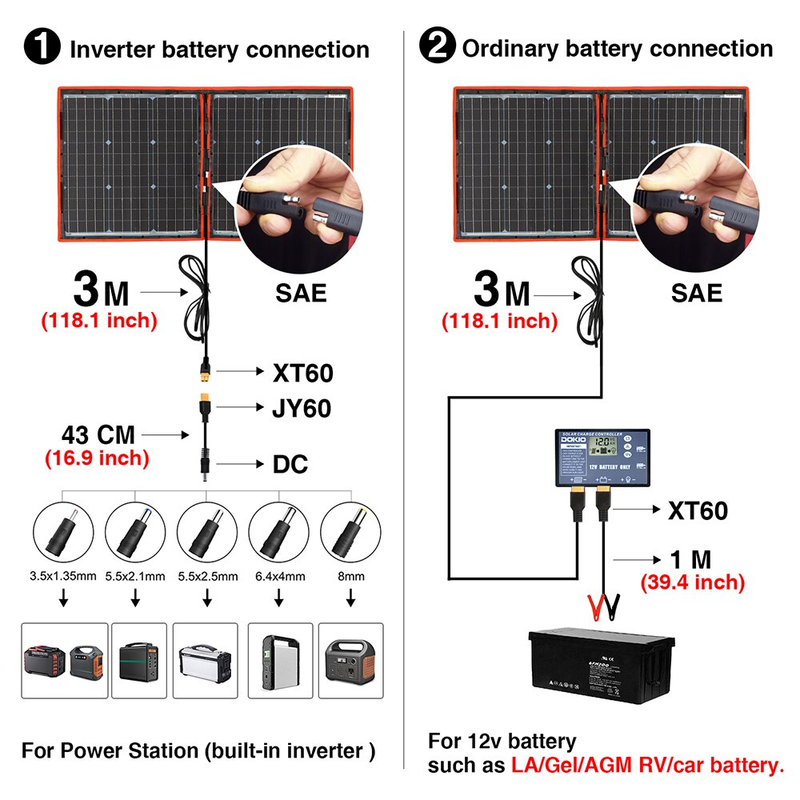

Package List:
1*80W Flexible Foldble Solar Panel(40W*2)
1*3M wire
1*10A 12Vcontroller
1*DC cable and connector
1*English User Manual
(The above data is based on the laboratory standard test environment)
For field connections,use minimun No.12AWG copper wires insulated for a minimum 90℃
Standard Test Conditions:
AM=1.5 IRRADIANCE=1000W/m2 Temp.=25℃
(The size is manually measured and there is a certain error.）
Controller support lead-acid,lithium ions and LiFePO4 battries.
Cable thickness: 2x1.0 mm²
A total of 4M long cable. With alligator clips.
18V 80W Flexible Foldable Solar Panel 12V Controller Portable for Camping Travel
