DC-DC Convertor Max 300W High Power Solar Charging Step-Up/Down Power
BoardUSD $13.29
Condition : New
Free Shipping
{{variant_type_name}} :
Notify me when the price drops
We will email you if we find a lower price on this product!
Product Description DC-DC Convertor Max 300W High Power DC5-30V to 1.25V-30V Buck Boost Power Supply Module Solar Charging Step-Up/Down Power Board Features:
This type of pressure lifting module uses a large heat sink to ensure heat dissipation; Four high-power tubes, the material is sufficient;
Three wire and round iron silicon aluminum magnetic ring inductance, not easy to saturate, further reduce the heating loss, thicken the 1.6 circuit board, increase stability, input and output using high frequency low resistance capacitance, greatly reduce the output ripple.
The mode fast input and output voltage allowed range is relatively large, the output is relatively stable, and it is widely used in many fields:
1. Used to charge a variety of batteries, constant voltage constant current adjustable, safe and reliable;
2. Used in voltage regulator occasions, as long as the input voltage range is in the voltage range of the regulator module, the output can be kept constant, such as 12V battery input will change in the range of 10-14V, but also stable output 12V unchanged;
3. Solar panel voltage regulation, solar panel voltage fluctuation is relatively large, this module can regulate the voltage output, supply power to the device or charge the battery;
4, can achieve constant current drive LED lights, such as battery-driven LED lights, can allow the current to be limited to the allowed range of LED, long-term reliable work,LED life greatly extended. Specifications:
Input voltage: DC 5V-30V
Output voltage: DC 1.25V-30V
Output current: 5A Maximum 10A is recommended
Output power: 150W Maximum 300W
Conversion efficiency: comprehensive not less than 80%
Operating frequency: 150KHz
Protection function: short circuit, over current, over temperature

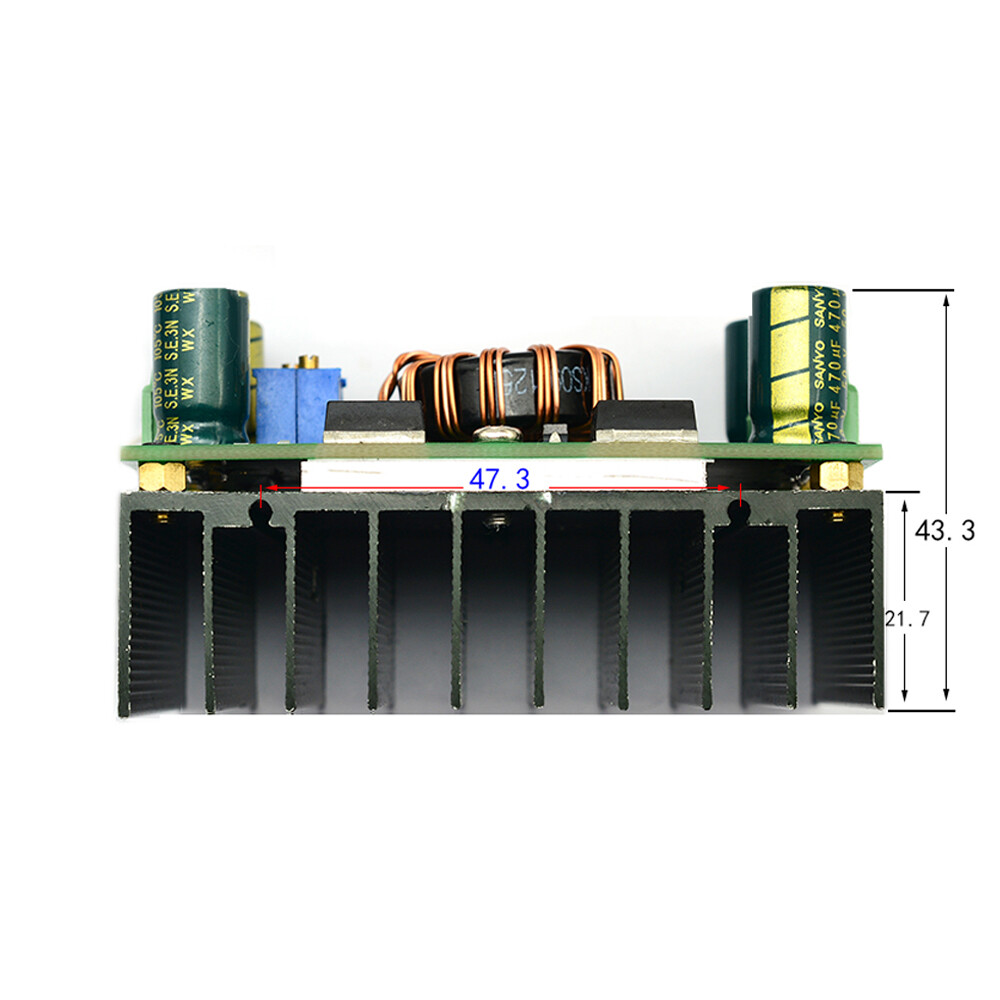

Size: about 76*45*43.3mm
Net weight: about 92g Note:
1.Due to the light and screen difference, the item's color may be slightly different from the pictures.
2.Please allow 1-3cm differences due to manual measurement. Package Included:
