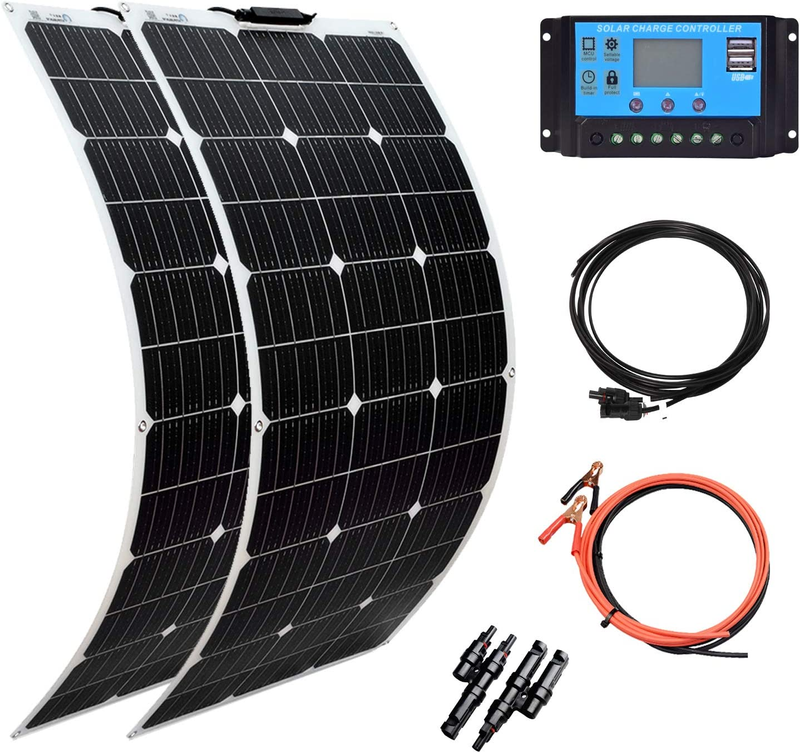

Flexible Solar Panel 100W 12V 200W System Kit Lightweight

*High Efficiency: solar panels use new Perc solar monocrystalline cells, up to 23% conversion rate, 100w solar panels are smaller, lighter and more portable

*Semi-Flexible: The plastic back sheet can be curved to a maximum 30 degree arc and mounted on RV, boat, cabin, tent, car, trucks, trailers or any other irregular surface.

*Thin & Lightweight：100W solar panel weighs approximately 4lb,Thickness is 0.1in， weighs 70% less than conventional solar panels, making transportation and installation a breeze.

*Practicality: Light energy converts electricity, Practical and suitable for use in areas where electricity is not available and where the city cannot reach, such as mountains, marine, deserts, and remote areas

*Nice Details: The component contains a bypass diode, and the circuit uses input over current protection and reverse protection design.The solar panel has 6 grommet mounting holes are available to attach fasteners，and can also be installed with silicone and adhesive tape.

Product Description
The XINPUGUANG 100W flexible solar panel is made of PERC Monocrystalline cell with a conversion rate of 23%. The weight is 4lb, which is 30% of the traditional solar panels.Size is 37.6x20.86x0.11 inch.The lightweight,portable nature of flexible solar panels makes solar panels more effective for RVs, caravan,boats,trailers,cabin,etc. , easy to install, plug and play. Maximum power(Pmax) 100 Watt Open circuit voltage(Voc) 21.6 Volt Short circuit current(Isc) 6.11 A Maximum power voltage(Vmp) 18 Volt Maximum power current(Imp) 5.55A Temperature range -20℃～+80℃ Maximum system voltage 700V DC Weight 1.85kg(4 lb) Size 37.6x20.86x0.11 in Standard Test Conditions 1000w/m2，Temperature 25℃,AM=1.5
200W solar system connection diagram
12V/parallel
24V/in series
20A charge controller Battery voltage：12V/24V auto suitable for ：lead acid batteries， lithium ions Build-in short-circuit protection,open-circuit protection,reverse
Extension cable Model: 13AWG Number of cores: single core multiple strands Voltage rating: 0.6/1KV Rated voltage: 1000V length：10FT
Cable with alligator clip Model: 13AWG Number of cores: single core multiple strands Voltage rating: 0.6/1KV Rated voltage: 1000V length：10FT
in parallel connector Maximum working voltage:DC1000V Shell Protection degree:IP67 Specification of Connecting Line: 4mm² Contact Material: Copper,Tin plate Track Page Views With Auctiva's Counter
