PowGrow PV Combiner Box, 4 String Solar Panel System, Surge
Protection, Metal BoUSD $136.99
Condition : New
Free Shipping
{{variant_type_name}} :
Notify me when the price drops
We will email you if we find a lower price on this product!
PowGrow PV Combiner Box, 4 String Solar Panel System, Surge Protection, Metal Box Professional PV combiner box is suitable for your Photovoltaic On/Off-Grid Solar Power Generation Systems. Which makes your solar panel system work reliably and safety. With multifunction: PV array input with first class combination, Quickly cut off circuit, anti-thunder protection, anti-reverse, overload, etc. Metal box with a lock. Waterproof class: IP65. Durable metal box makes it much more suitable for outside use and installation. It has a longer lasting time than the PVC plastic solar combiner box. The internal mount plate is also made of metal. High quality wires. All wires are pre-wired in the box. Our solar combiner box is used professional wires that are especially for solar system. Built-in with a ground wire connector, the ground wire installation is available. Please ensure the current and voltage of single PV array doesn’t exceed 10A/250VDC. Then you can connect solar panel to the combiner box. Built in with 4pcs individual 15A rated fuse(10x38mm). Max current of single PV input array is 10A. Their function is over load protection. The Combiner Box protects PV solar panel and inverter. Besides it will reduce the length of cable connect from panel to inverter, optimize system instruction makes the system more useful and maintenance. All in all. It will make the PV power system increase output power. 50A air circuit breaker. It can provide short circuit fault protection and controls the combiner box output. Here is a Surge Protective Device/Lighting Arrester provides lightning protection. The “Green” indicates Normal, once it changes into “Red”. Remember to replace the SPD with a new one.
Product Description Our PV Combiner Box is a device designed to reduce the connection line between PV modules and inverter, facilitate maintenance and improve reliability. Using PV Combiner Box, users can connect a certain number of PV modules with the same specifications in series to form a series of PV modules according to the DC voltage range of the inverter input, then connect several series to the PV Combiner Box. All wires are pre-wired in the box. Our solar combiner box is used professional wires that are especially for solar system. Built-in with 15A Rated Current Fuse, Surge Protective Device and 50A Air Circuit Breaker and a ground wire connector, the ground wire installation is available.
Fuse Holder& Fuse
4pcs individual 15A rated fuse. Max current of single PV input array is 10A. Their function is over load protection.
Air Circuit Breaker
It can provide short circuit fault protection and controls the combiner box output. Professional low voltage Air Circuit Breaker controls output, with anti-circuit protection function which makes the system more reliable and safety.
Surge Protective Device
It provides lightning protection. Both positive and negative poles with anti-thunder protection function.The “Green” indicates Normal, once it changes into “Red”. Remember to replace the SPD with a new one. Which protects your devices.
Anti-rust Lock with key
Our PV combiner box is built-in with an anti-rust lock and keys. It is very easy to use. Protects the box from opening by others.
All Metal Construction The combiner box is made of durable metal box which makes it much more suitable for outside use and installation. It has a longer lasting time than the PVC plastic solar combiner box. The internal mount plate is also made of metal. There are Heat Insulation Devices between Fuse Holder, SPD and Circuit Breaker. Increased the installation distance between them. To improve the heat dissipation effect.
DIN Rail Installation DIN rail mount to install the Fuse Holder, SPD and Circuit Breaker. It is very easy to use if you want to replace these components. Metal guide rail and metal mount plate, safe and reliable

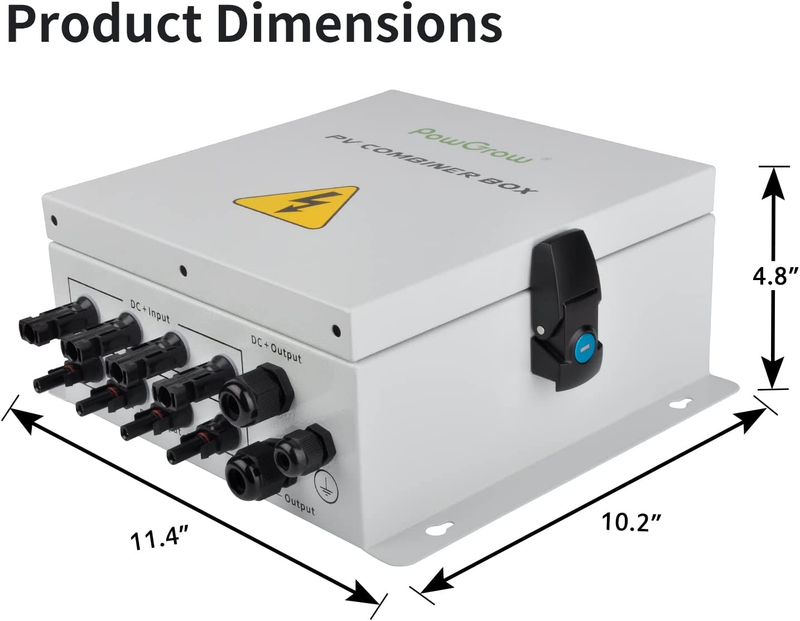

Durable Photovoltaic Wires Our solar combiner box is used with professional wires that are especially for solar system which are much more durable than usual wires. Item Weight 9.24 pounds Package Dimensions 13.98 x 13.23 x 6.54 inches Size 4 String ShippingFast shipping is very important for us. We use multiple fulfilment warehouse around the United States. We only ship to the lower 48 States and do not ship to PO Boxes. Our standard US shipping service is $6.99 per order. Your order will be shipped within 2-3 business days upon full payment received. Your order will be delivered within 1-5 business days after the handling time. We reserve the right to cancel any order for any reason at any time. We are not responsible for undeliverable addresses. Returns We offer a 30 days return policy from checkout date. FeedBack Your feedback very important to us, after you get your package and you are satisfied with our service please leave us positive feedback If you have any problem with your order / any questions please before leave any type of feedback For any questions, using eBay contact system Please visit our eBay store to check out other items for sale! Thank you for shopping at our store.
Product Description Our PV Combiner Box is a device designed to reduce the connection line between PV modules and inverter, facilitate maintenance and improve reliability. Using PV Combiner Box, users can connect a certain number of PV modules with the same specifications in series to form a series of PV modules according to the DC voltage range of the inverter input, then connect several series to the PV Combiner Box. All wires are pre-wired in the box. Our solar combiner box is used professional wires that are especially for solar system. Built-in with 15A Rated Current Fuse, Surge Protective Device and 50A Air Circuit Breaker and a ground wire connector, the ground wire installation is available.
Fuse Holder& Fuse
4pcs individual 15A rated fuse. Max current of single PV input array is 10A. Their function is over load protection.
Air Circuit Breaker
It can provide short circuit fault protection and controls the combiner box output. Professional low voltage Air Circuit Breaker controls output, with anti-circuit protection function which makes the system more reliable and safety.
Surge Protective Device
It provides lightning protection. Both positive and negative poles with anti-thunder protection function.The “Green” indicates Normal, once it changes into “Red”. Remember to replace the SPD with a new one. Which protects your devices.
Anti-rust Lock with key
Our PV combiner box is built-in with an anti-rust lock and keys. It is very easy to use. Protects the box from opening by others.
All Metal Construction The combiner box is made of durable metal box which makes it much more suitable for outside use and installation. It has a longer lasting time than the PVC plastic solar combiner box. The internal mount plate is also made of metal. There are Heat Insulation Devices between Fuse Holder, SPD and Circuit Breaker. Increased the installation distance between them. To improve the heat dissipation effect.
DIN Rail Installation DIN rail mount to install the Fuse Holder, SPD and Circuit Breaker. It is very easy to use if you want to replace these components. Metal guide rail and metal mount plate, safe and reliable
Durable Photovoltaic Wires Our solar combiner box is used with professional wires that are especially for solar system which are much more durable than usual wires. Item Weight 9.24 pounds Package Dimensions 13.98 x 13.23 x 6.54 inches Size 4 String Shipping
Returns Accepted for this item if it's within 30 Days
